Stage Plot

Typical stage setup for the band. Download the PDF here.

Instrumentation

• For full production shows, the band typically brings the following items.
• *Items in bold are usually brought by the band members and would not be included in backline equipment requests unless specified.
• **Items in italics are also included in the PA System section.

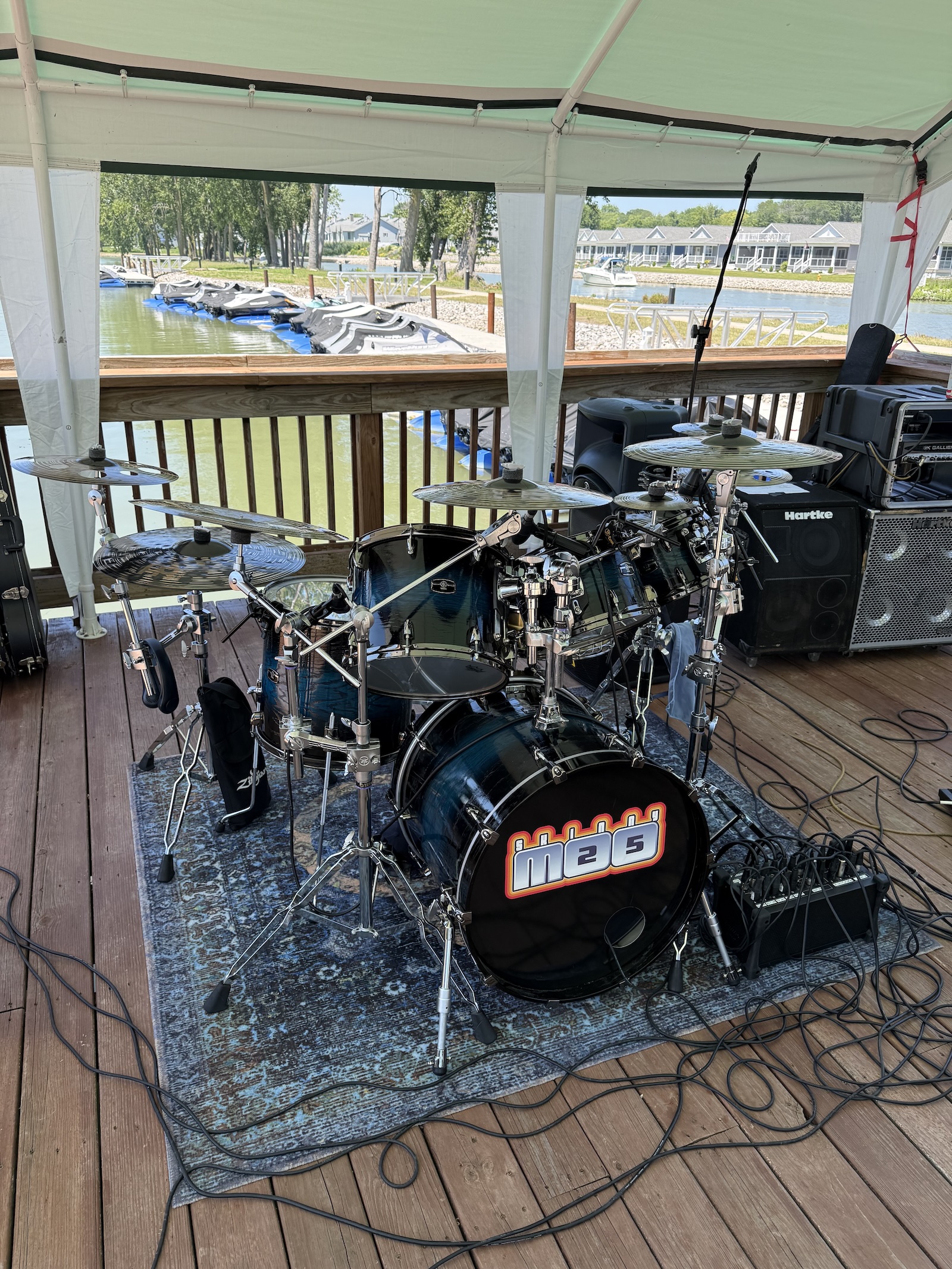

	Drums: Yamaha Live Custom Hybrid Oak Toms (10”x7”, 12”x8”, 14”x11” Rack Toms, 16”x15” Floor Tom), and Kick (22”x18”) {Remo Clear Emperor Heads on top, Clear Ambassador on the bottom, Remo Powerstroke 3 Clear 22” Bass Drum Head, Skinny Moo logo head 22”}. Yamaha 14”x5.5” Brass Snare {Remo Powerstroke 77 Coated 14” (w/ Clear Dot), Remo Ambassador Hazy Snare-side 14”}. Yamaha FP9 Bass Drum Double Pedal (Chain-Drive). Remo Rem0s Tone Control Rings (10”, 12”, 14”, 16”, 14” (for snare), Remo Muff L Ring Control for 22” Bass Drum (x2)). Yamaha DS-840 Heavyweight Drum Throne. Meinl Classics Custom Dark Cymbals (10 Total: 8”, 10” Splash, 12” Trash Splash, 13” Hi-Hats, 16”, 18” Medium Crash, 16” Trash Crash, 18” China, 20” Medium Ride). LP Large Cowbell, Rhythm Tech Mounted Tambourine. Yamaha Hardware: 3 – Yamaha CL-945B YESS Tom Ball Clamp 1 – Yamaha TH945B YESS Mount Double Tom Holder (For Kick Drum Socket) 4 – Yamaha HXACII Hexrack Accessory Clamp 1 – Yamaha SS-950 Ball and Socket Snare Stand 1 – Yamaha HS-850 Double Braced Hi-hat Stand – 3-leg 3 – Yamaha CS-865 Boom Cymbal Stand – Double Braced 4 – Yamaha Medium Boom Cymbal Holder Medium Boom Cymbal Holder – 12 inch 1 – Yamaha Short Boom Cymbal Holder Short Boom Cymbal Holder – 6 inch 1 – Yamaha WS860A 800 Series Double Tom Stand Miscellaneous: 1 – Drum Mat (6’x5.25’ – Drum N Base Vintage Persian Style Stage Rug in Blue/Gray or Black) 1 – Kelly SHU Pro Bass Drum Microphone Shockmount (Aluminum, Black Finish) 2 – Kelly SHU 6-pack Pre-built Support Cords (SHU-ACZ2) **1 – Shure Microphone kit (Kick, Snare, 3 Toms) 4 – LP Claw w/ Mic mounts **1 – Behringer Eurolive B1200D-PRO 500W 12” Powered Subwoofer **1 – Mackie Powered Stage Monitor
	Bass: Ampeg SVT bass amp Furman power conditioner Korg rackmount tuner *Bass guitar *Pedalboard + pedals (various)
	Guitar: Marshall JCM800 50-watt amp head Marshall 4×12 amp cabinet Hughes & Kettner Red Box 5 DI **(1) Audit CabGrabber amp mic holder ( guitar mic ) **SM57 guitar mic **mic boom stand **Telefunken M80 mic *Guitars (various) *Multi-guitar stand *Pedalboard + pedals (various)
	Keyboards: Furman M-8X AR 15A Voltage Regulator *Nord Stage 2 73-key keyboard *M-Audio Axiom 61 61-key MIDI controller keyboard **Telefunken M80 microphone Shure diversity wireless in-ear transmitter/receiver Shure P4M personal monitor mixer Ultimate Apex stand with mic boom attachment **Mic boom arm Hercules Stands DG307B 2-in-1 Tablet and Phone Holder Gator X-style keyboard bench On-Stage WS8540 Heavy-Duty Medium-format T-Stand Krane AMG 500 dolly *Yamaha piano-style sustain pedal *Yamaha FC-7 expression pedal *One button on/off foot switch w/ 1/4″ connector *(1) MIDI DIN connector cable (2) 1/4″ balanced audio cables (keyboard outs) (1) XLR 15′ cable (mic) (2) XLR 25′ cables (in-ear mix IN)
	Lead Vocals: **Shure wireless mic + receiver OR SM58 **Headrush FRFR-112 MKII powered cab **Mic boom stand
	PA: Allen & Heath SQ-5 mixer Allen & Heath AB168 16×8 Digital Stage Box Cat5e shielded cable 25′ GL.iNet GL-SFT1200 (Opal) Portable WiFi Travel Router Cat5 cable 2′ (2) JBL EON715 15-inch Powered PA Speakers (2) Electro-Voice ELX 118P 18″ subwoofer (2) speaker poles (3) Mackie powered floor wedges (1) Headrush FRFR-112 MKII powered cab (1) Behringer Eurolive B1200D-PRO 500W 12” Powered Subwoofer (3) Vocal mics ( 2 Telefunken M80, 1 Shure wireless mic ) (2) OH mics ( Lewitt LCT 040 match pair ) (1) Guitar amp mic ( SM57 ) (2) boom mic stands ( vocals ) + boom arm for Apex keyboard stand (2) boom mic stands ( OH mics ) (1) Audit CabGrabber amp mic holder ( guitar mic ) **1 – Shure Microphone kit (Kick, Snare, 3 Toms) All necessary XLR / 1/4″ cables
	Lighting: (1) Eliminator Mini Par Bar (2) Eliminator LP 42 RBGW LED PAR
